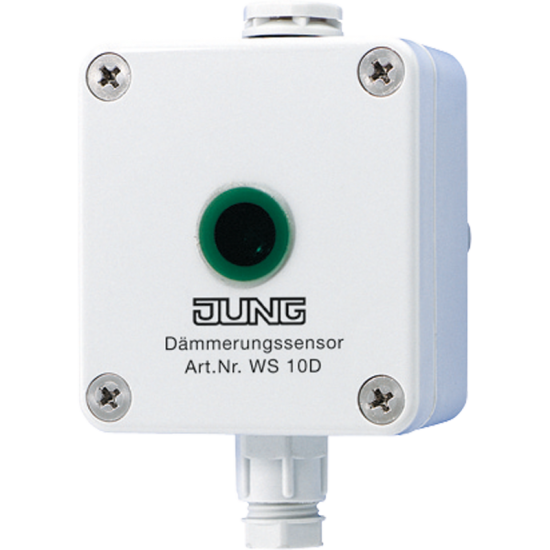

Датчик сумеречный, WS 10 D
Артикул:
WS 10 D
Оставить отзыв
Есть в наличии
Способы доставки
- Самовывоз из Новой почты
- Курьер Новой Почты
- Самовывоз из магазина
- Другие транспортные службы
Способы оплаты
- Наличными при получении
- Безналичный перевод
- Приват 24
- WebMoney
напряжение питания: 24 В DC
диапазон измерения: 0 - 255 люкс, линейная характеристика
The brightness sensor is used for the measuring and evaluation of the brightness.
The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).
The temperature sensor is used for the measuring and evaluation of the temperature.
The value measured by the sensor is transmitted to an analogue output signal of 0 ... 10 V by the electronics.
Connections:
Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 ... 10 V
диапазон измерения: 0 - 255 люкс, линейная характеристика
The brightness sensor is used for the measuring and evaluation of the brightness.
The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).
The temperature sensor is used for the measuring and evaluation of the temperature.
The value measured by the sensor is transmitted to an analogue output signal of 0 ... 10 V by the electronics.
Connections:
Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 ... 10 V
