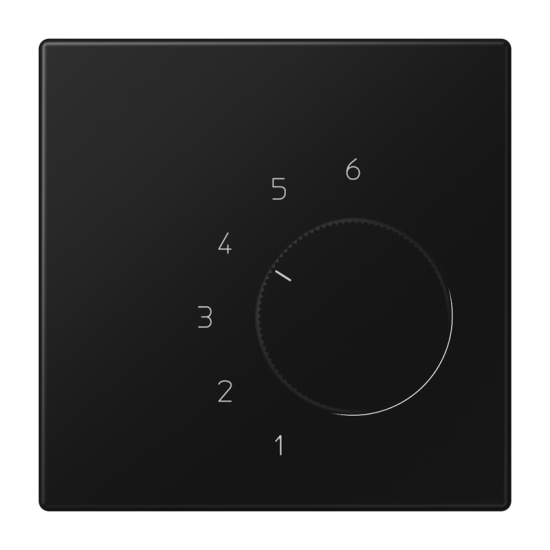

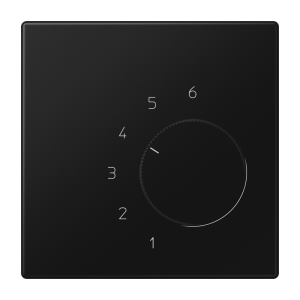

Room thermostat (2-way contact), TR LS 236 SWM

with screwless terminals for rigid wires up to 2.5 mm²
screw fixing only, without claws
1-pole, 2-way, heating 10 (4) A, AC 230 V ~, 50/60 Hz
1-pole, 2-way, cooling 5 (2) A, AC 230 V ~, 50/60 Hz
For switching between heating/cooling the EBERLE terminal strip EV..H/K is necessary.
Значение в скобках – для индуктивной нагрузки с cos ? = 0,6.
Thermal feedback (neutral conductor required)
Hysteresis: 0.5 K, nominal range: +5 °C ... +30 °C
No neutral position
Without switch and control LED
When set temperature is reached the NO/NC contact switches over.
