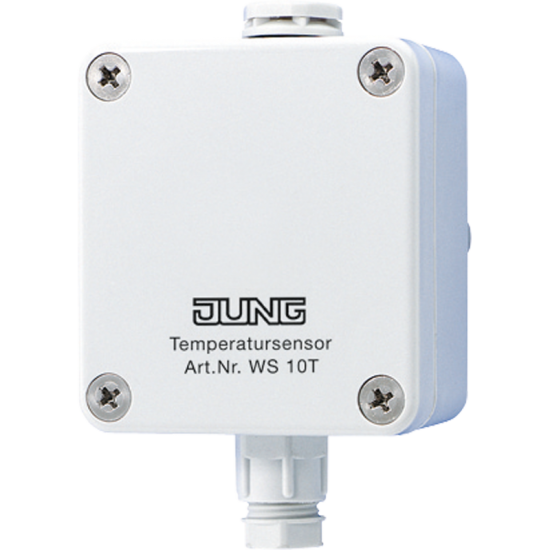

Сенсор температуры, WS 10 T
Артикул:
WS 10 T
Оставить отзыв
Есть в наличии
Способы доставки
- Самовывоз из Новой почты
- Курьер Новой Почты
- Самовывоз из магазина
- Другие транспортные службы
Способы оплаты
- Наличными при получении
- Безналичный перевод
- Приват 24
- WebMoney
напряжение питания: 24 В DC
диапазон измерения: –30 °С - +70 °С, линейная характеристика
The brightness sensor is used for the measuring and evaluation of the brightness.
The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).
The temperature sensor is used for the measuring and evaluation of the temperature.
The value measured by the sensor is transmitted to an analogue output signal of 0 ... 10 V by the electronics.
Connections:
Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 ... 10 V
диапазон измерения: –30 °С - +70 °С, линейная характеристика
The brightness sensor is used for the measuring and evaluation of the brightness.
The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).
The temperature sensor is used for the measuring and evaluation of the temperature.
The value measured by the sensor is transmitted to an analogue output signal of 0 ... 10 V by the electronics.
Connections:
Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 ... 10 V
